Description

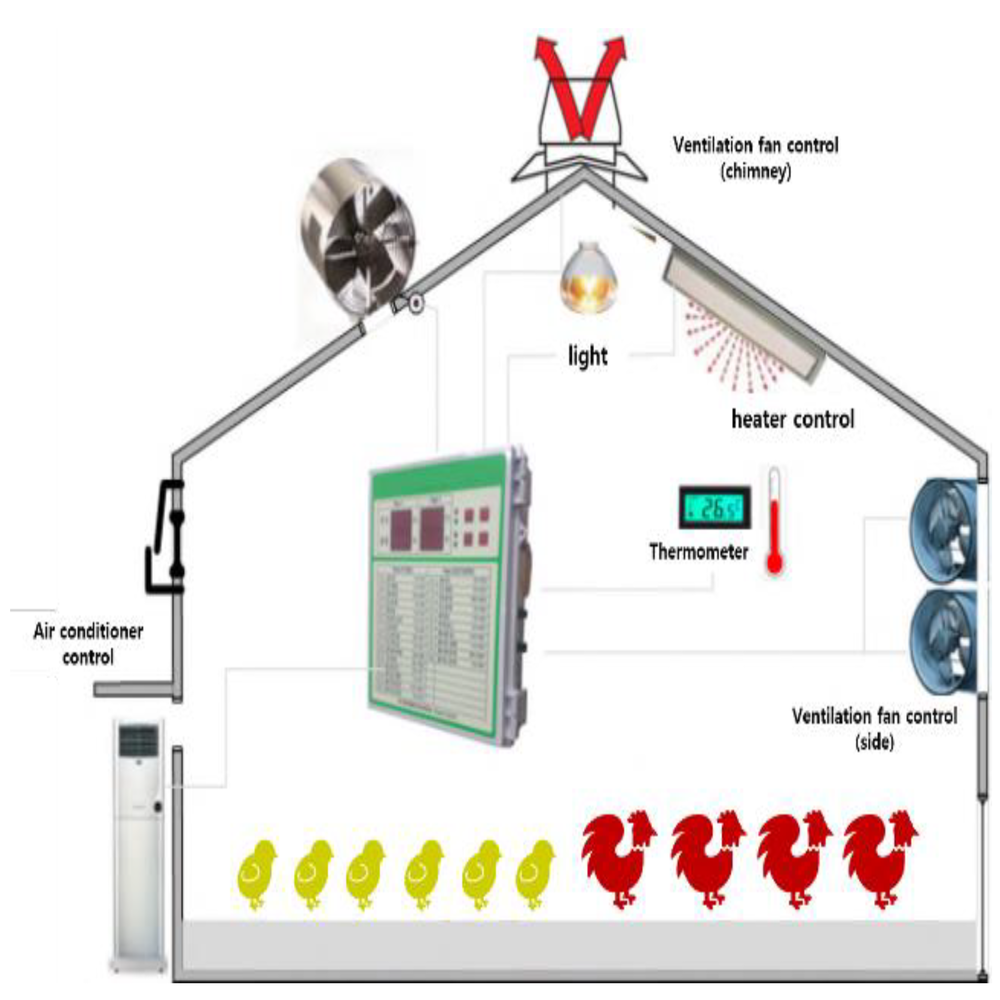

Smart Poultry Farm Automation System
Current Functionality (Already Implemented)
● Appliance Control: Ability to control any appliance.
● Connectivity: Works with both SIM and Wi-Fi modules.
● Dual Operation: Supports both remote and manual control simultaneously.
● Backend: Backend system and database are fully completed.
● Frontend: Frontend application is 80% complete.
(If preferred, we can share our API documentation so you can develop your
own frontend application.)
Future Features (Planned Enhancements)
● Ammonia level detection in the air.
● Water level monitoring system.
● Alert system in case of controller failure.
● Vaccine reminder or general alarm/notification system.
● Integration of an automatic feeding system.
● Camera-based farm monitoring system.
Costing Details
● Complete System Cost per Farm: ₹90,000
● Includes:
● Backend API
● Controller
● Sensors: 5 temperature and humidity sensors (suitable for covering a 40
ft x 300 ft farm)
● Frontend and backend server infrastructure
Sensor Information
● The sensor currently installed at the visited farm is DS18B20.
It is already compatible and easily integrated with our existing system.
● However, please note: DS18B20 only measures temperature, not humidity.
Sensor Recommendation
● We recommend using the SHT31 or SHT35 sensors.
These sensors can measure both temperature and humidity, providing a more
complete environmental overview.
Additional Offering: Custom Incubators
● We also offer custom incubators designed to hatch fertile eggs.
● Our incubators provide:
● Temperature control
● Humidity control
● Automated egg rotation
● Integrated humidifier
● Complete incubation system
● Note: Incubator cost is not included in the main system price.
